| Parameter | Description |
| /S or /? | This parameter is used to display the various options of HWSET.EXE in a single, simplified help screen. |
| /MR | This parameter restores the Sound 336 AM/AMSP to its factory default settings. This parameter is ignored when the EEPROM chip is disabled. |
| /MS | This parameter stores the current values of SOUND 336 AM/AMSP's hardware settings to the EEPROM. This parameter is ignored when the EEPROM is disabled. |
Mixer Options And Values
| Option | Value | Description |
| VV | 0-16,0-16 | Sets the left channel (0-16) and right channel (0-16) volume for the Sound Blaster compatibility module. |
| VF | 0-16,0-16 | Sets the left channel (0-16) and right channel (0-16) volume for the FM Music Synthesizer and Wave Table Synthesizer modules. |
| VL | 0-16,0-16 | Sets the left channel (0-16) and right channel (0-16) volume for the Line-in and CD-audio sources. |
| VM | 0-16 | Sets the volume for the microphone. |
Note
To set the Sound Blaster compatibility module's left channel volume to 10 and the right channel volume to 12, type:
HWSET /VV:10,12 <Enter>
If a single value is specified, this value will apply to both left and right channel volumes.
Hardware Options And Values
| Option | Value | Description | /SBA:X | 220 or 240 | Sets the Sound Blaster compatibility module's I/O port address range. | /SBDMA:X | 0,1,3 | Set Sound Blaster DMA Channel | /MPUA:X | 300 or 330 | Sets the MPU401 (MIDI) module's I/O port address range. | /MSSA:X | 530, 604, E80 or F40 | Sets the Microsoft Windows Sound System compatibility module's I/O port address range. | /SBIRQ:X | 2,5,7 or 10 | Sets the Sound Blaster compatibility module's interrupt. | /MPUIRQ | 2,5,7 or 10 | Sets the MPU401 (MIDI) module's interrupt. | /CD:X | P(anasonic) or D | This option sets the type of CD-ROM drive connected to the sound card. Set this option to "D" if there is no CD-ROM drive. | /GPA:X | D or E | Enables (E) or disables (D) the SOUND 336 AM/AMSP's game port. | /MSS:X | D or E | Enables (E) or disables (D) the Microsoft Windows Sound System compatibility module. | /MPU:X | D or E | Enables (E) or disables (D) the MPU401 (MIDI) module. | /COMP:X | 1, 2, 3, 4, D--Disable | Set Comm Port | /COMI:X | 2, 3, 4, 5, 7, 10, 11 | Sets Comm Port Interrupt |
Note
To set the CD-ROM drive type to PANASONIC and the CD-ROM drive's IRQ to 15, type:
HWSET /CD:P /CDIRQ:15 <Enter>

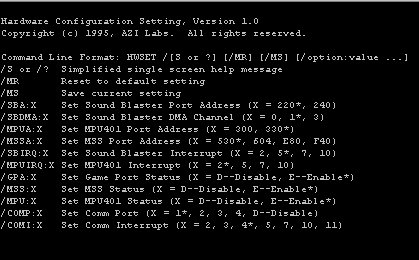

Hwset.exe /? Screen Shot
