Rocky 2.5 28kB, Europe Layout

Default Settings and Installation
The default settings are set by Windows 95 - the card is totally Plug & Play.

Intervention is limited to the physical hardware and connections. Use a free ISA slot on the Riser board. Connect the various internal connections following the coding on the cables and board.

A jumper is provided to accommodate the type of microphone to be used.

JX1 Type Of MIC

  1. 1-2 Condenser default.
  2. 2-3 Carbon>
On power up the board will be configured optimally and the software drivers will be added. The settings and drivers can be viewed via the SETTINGS/CONTROL PANEL of Windows 95.

Interfaces and Connectors

Name Location Type Function
MIDI & GAME External D-SUB 15 MPU401 & Sound Blaster Pro Compatible
CD AUDIO1 Internal 4 pin PH connector Analogue CD AUDIO
CD AUDIO2 Internal 4 pin PH connector Analogue CD AUDIO
MIC 1 Internal 3 pin friction lock header mono Mic. input
MIC External 3.5 mm jack mono Mic. input
LOUT 1 Internal 4 pin friction lock header stereo LINE OUT
LINE OUT External 3.5 mm jack stereo LINE OUT
RADIO Internal 4 pin friction lock header stereo FM Radio audio
TV AUDIO Internal 4 pin friction lock header stereo TV Audio
WAV Internal 2*13 pin header Wave table upgrade
TEL External RJ11 telephone socket Telephone line and handset connector

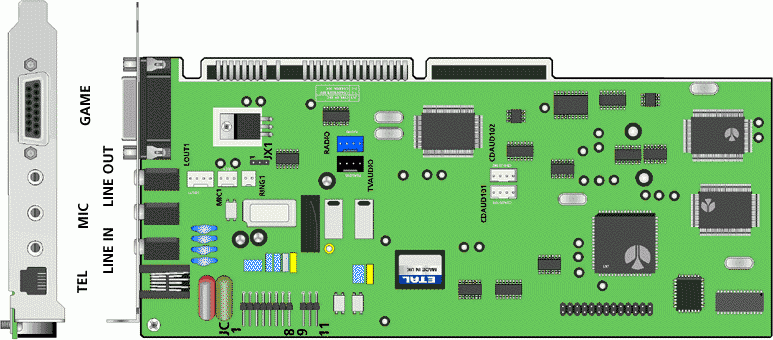

Rocky 2.5 Layout
Layout
