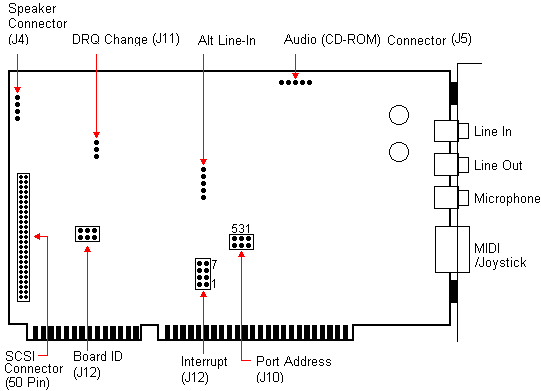

Jumper Settings
BOARD ID (J2): (NOT SCSI ID)
| Pins | 1-2 | 3-4 | 5-6 |
| 0 | Off | Off | N/A |
| 1 | On | Off | N/A |
| 2 | Off | On | N/A |
| 3 | On | On | N/A |
| 4 | N/A | N/A | On |
I/O Address (J10)
| Pins | 1-2 | 3-4 | 5-6 |
| 220 | On | Off | Off |
| 230 | Off | On | Off |
| 240 | Off | Off | On |
DMA Sharing - DRQ (J11)
| Pins | 1 | 2 | 3 |
| Disabled | On | On | Off |
| Enabled | Off | On | On |
Interrupt - IRQ (J12)
| Pins | 1-2 | 3-4 | 5-6 | 7-8 |
| 7 | On | Off | Off | Off |
| 5 | Off | On | Off | Off |
| 3 | Off | Off | On | Off |
| 2 | Off | Off | Off | On |
