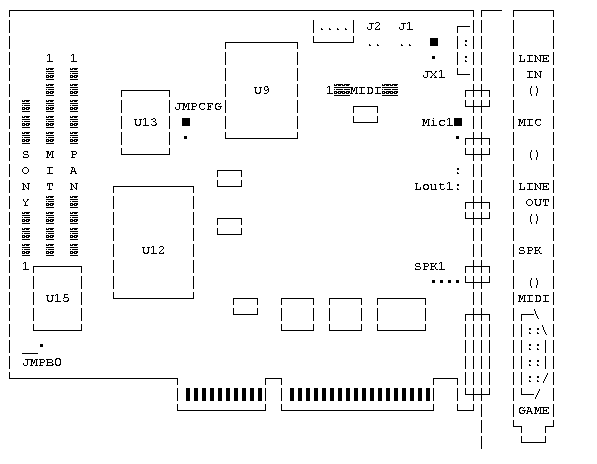

Forte 16 SBPA II Layout

Forte 16 SBPA II Jumpers
Forte 16 SBPA II Connectors
Forte 16 SBPA II Sockets





Forte 16 SBPA II Jumpers

Notes

*indicates default settings.
**this jumper is labeled as reserved in the Users Guide and should not be changed.

J1
*Out
Reserved**
Speaker
In
Amplification
JX1
*1-2
Condenser Microphone
Microphone
2-3
Carbon Microphone
Selection
JMPCFG
*1-2
Normal Operation
(EEPROM Settings)
Factory
2-3
Software Settingd
Default
(Disables EEPROM)
JMPB0
*1-2
220H
Sound Base
2-3
240H
Address
This jumper ignored
when JMPCFG is on 1-2.



Forte 16 SBPA II Connectors


Notes

*These connectors are labeled as reserved in the Users Guide and should not be used.

SONYSONY CD-ROM Interface
MITMITSUMI CD-ROM Interface
PANPANASONIC CD-ROM Interface
MIDIWave Table Synthesis Interface
SPK1Reserved*
J2Reserved*
PC Speaker
JP1CD Audio In
ModemVoice Modem Interface (4 pins)



Forte 16 SBPA II Sockets

Socket
Chip
Description
U9
CS4231-KL EP
16-bit Parallel CODEC with 16 byte FIFO
U12
PACKARD BELL
SB/MSS/MPU-401 Compatible Interface
U13
PACKARD BELL
SB/MPU-401 Emulation
U15
AZTECH
SBPRO Compatible Emulation
