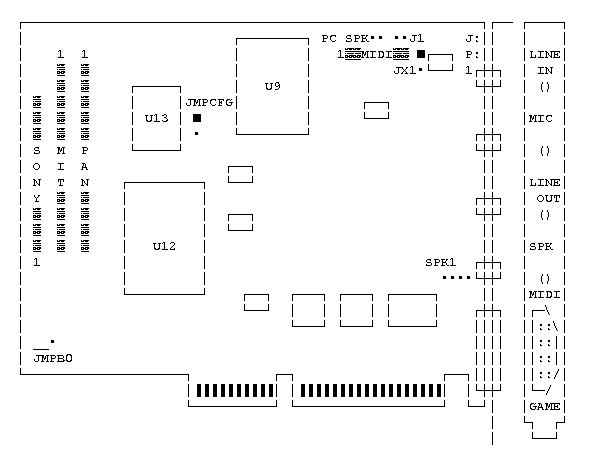

Forte 16 SB3 Layout

Forte 16 SB3 Jumpers
Forte 16 SB3 Connectors
Forte 16 SB3 Sockets






Forte 16 SB3 Jumpers

NOTES:

*indicates default settings.
**this jumper is labeled as reserved in the Users Guide and should not be changed.

Jumper
Setting
Function
J1
*Out
**Reserved
In
JX1
*1-2
Condenser Microphone
Microphone
2-3
Carbon Microphone
Selection
JMPCFG
*1-2
Normal Operation
Factory
2-3
Factory Defaults
Default
(Disables EEPROM)
JMPB0
*1-2
220H
Sound Base
2-3
240H
Address
This jumper ignored
when JMPCFG is on 1-2.



Forte 16 SB3 Connectors

Notes

**these connectors are labeled as reserved in the Users Guide and should not be used.

CONN
Device
SONY
SONY CD-ROM Interface
MIT
MITSUMI CD-ROM Interface
PAN
PANASONIC CD-ROM Interface
MIDI
Wave Table Synthesis Interface
SPK1
Reserved**
J2
Reserved**
JP1
CD Audio In



Forte 16 SB3 Sockets
Socket
Chip
Description
U09
CS4248-KL EP
16-bit Parallel CODEC with 16 byte FIFO
U12
PACKARD BELL
SB/MSS/MPU-401 Compatible Interface
U13
PACKARD BELL
SB/MPU-401 Emulation



01585317
