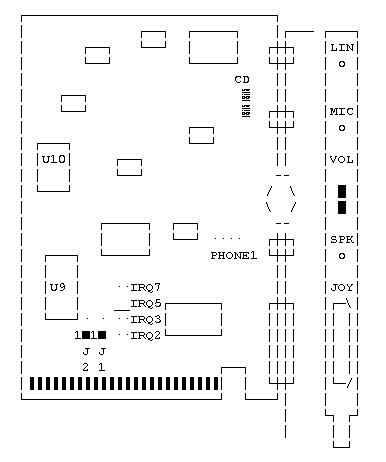

Sound Galaxy BXII (BX2) Layout



Jumpers

Base Address
1-2
220H
(J1)
2-3
240H
Game Port
1-2
Enabled
(J2)
2-3
Disabled
IRQ Select
IRQ7
IRQ 7 Enabled
JP2
IRQ5
IRQ 5 Enabled
IRQ3
IRQ 3 Enabled
IRQ2
IRQ 2 Enabled

Connectors

PHONE1 Multimedia Speaker Connector
CD CD Audio In

Sockets

Socket
Chip
Description
U9
PACKARD BELL
SB Compatible Hardware Interface
U10
iAZTDSP32
SB Compatible Emulation
